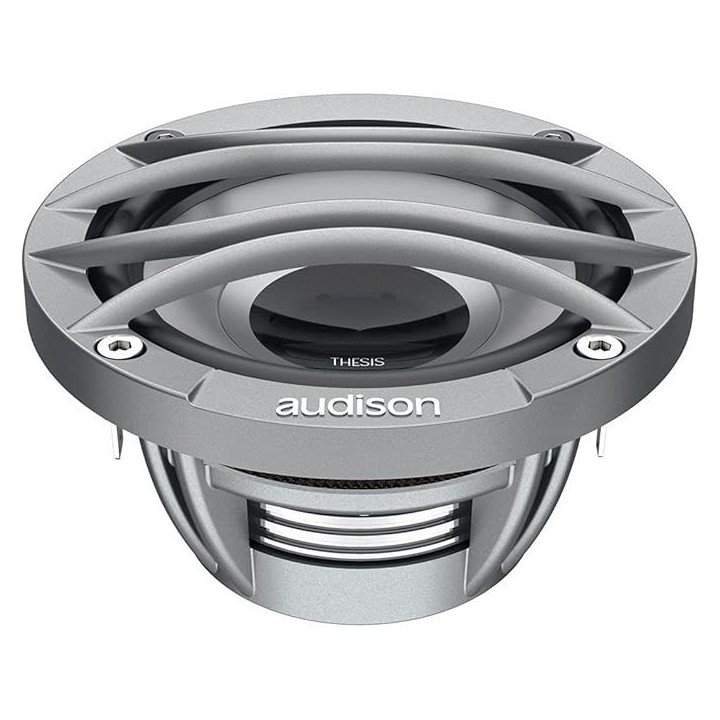

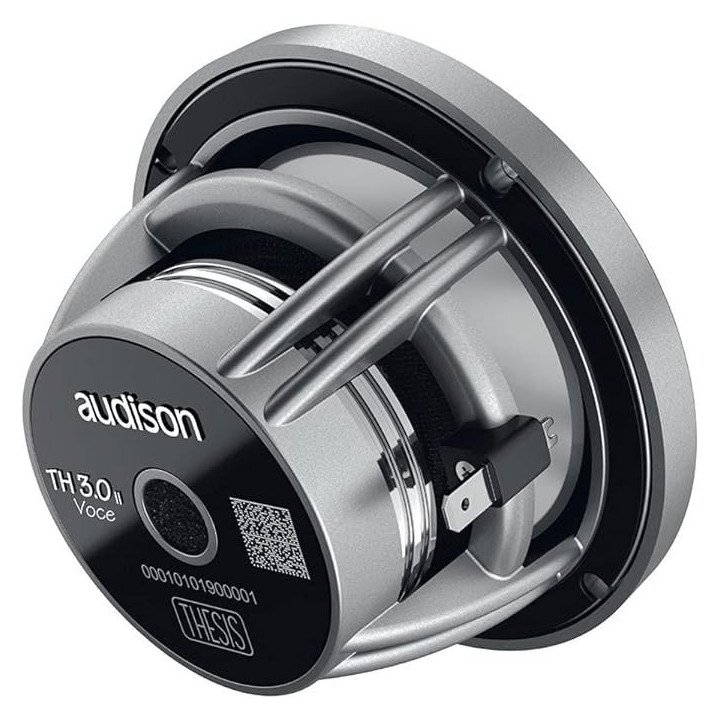

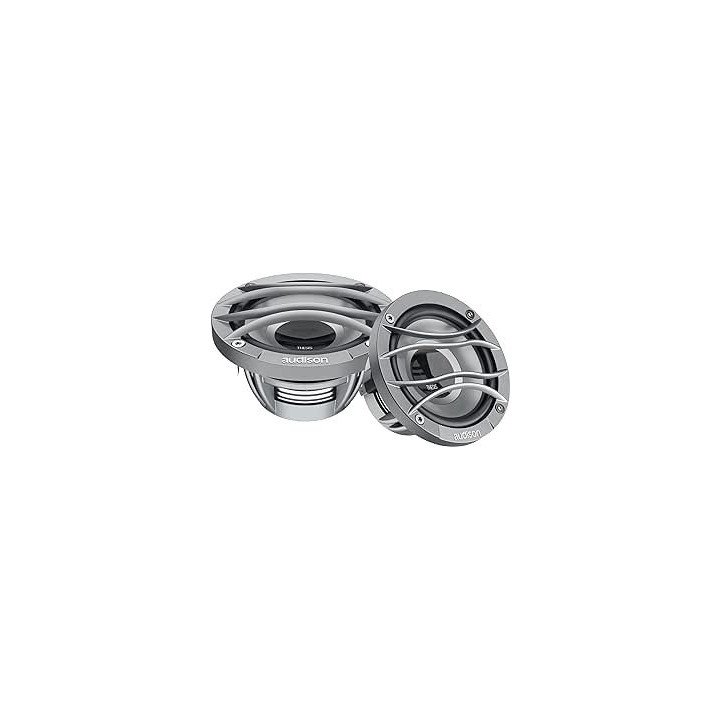

Referencia: TH 3.0 II voce
Size 70 mm
Power Handling - Peak 110 W
Power Handling - Continuous 55 W
Impedance 4 Ohm
| Size | 70 mm |
| Power Handling - Peak | 110 W |
| Power Handling - Continuous | 55 W |
| Impedance | 4 Ohm |
| Frequency Response | 110 ÷ 5700 Hz |
| Magnet Material | SPECIAL NEODYMIUM N38H |
| Voice coil Ø | 30.5 mm |
| Voice Coil Material | CCAP - COPPER CLAD ALLUMINIUM RIBBON |
| Woofer Qes | 0,52 |
| Xmax | 3.3 mm |
| D | 66.75 mm |
| Re | 3.4 Ohm |
| Fs | 100 Hz |
| Vas | 1.01 l |
| Mms | 4.3 g |
| Cms | 0.59 mm/N |
| BL | 4.2 T•m |
| Qms | 5.5 |
| Qts | 0.48 |
| Le Standard | 0.18 mH |
| Spl | 85.6 dB |
| Weight | 0.25 kg |
| Dimension A | 84 mm |
| Dimension B | 73.5 mm |
| Dimension C | 45 mm |
| Dimension D | 37 mm |
| Dimension E | 89 mm |
| Dimension F | 18 |
