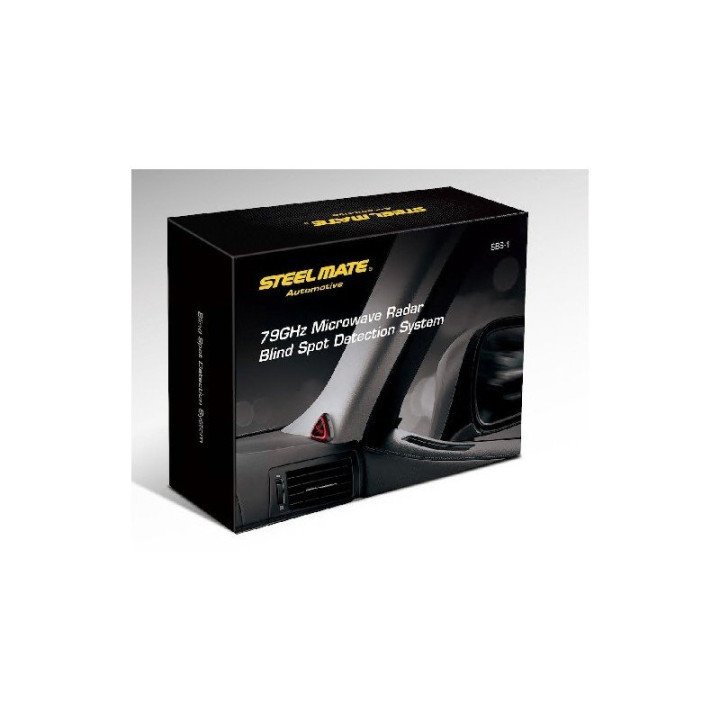

Avisador de Angulo muerto STEELMATE BSD2

Avisador de ángulo ciego de Steelmate

    Este producto de ayuda a la conducción consiste en 2 sensores de microondas que se instalan en la defensa trasera del vehículo conectados a unos indicadores en los retrovisores. Cuando un vehículo que viene por detrás empieza la maniobra de adelantamiento por cualquiera de los dos lados el sistema lo detecta y así lo indica para evitar un problema al intentar cambiar de carril.

Características:

- Reduce el riesgo de accidentes

- Alarma visual y sonora (puede eliminarse)

- Detecta vehículos por cualquiera de los dos lados

- No detecta vehículos estacionados

- No detecta vehículos del carril contrario

- No detecta al vehículo que se adelanta

- Válido para 12v y 24v

New and improved 2nd generation of Blind Spot Detection System, with max. range of 30 meters. It reminds the driver that he or she has already been overtaken by another vehicle from the left or right side. The drivers often forget to check up the side lane in blind angle, before they drive into It. The system reduces the possibility of a fatal accident caused while overtaking or changing driving lanes. SBS-2 is homologated and developed in cooperation with a car manufacturer.

Scope of use:

• vehicle detection in the blind spot BSD (max. 8 meters)
• closing vehicle warning CVW         (max. 30 meters)

Features:

• signaling

  • indoor (advantageous in heavy rain, in reduced visibility)
  • visual and audio (audio can be turned off)
• detects:

  • vehicles approaching from the left or right side
• not detected are:

  • parked vehicles in both directions
  • approaching vehicles from the opposite lane
  • vehicles that are being overtaken
• for vehicles with 12V on-board voltage
• current consumption: <250mA
• length of cables from RJ to displays approx. 5.5 m and 6.5 m
• optimized algorithms
• it is necessary to carry out a test drive before using it in operation

Sensor:

• 77GHz microwave - only 1x
• IP67 - waterproof
• installation without drilling a hole
• minimum dimensions
• range: up to 30 m
• installation height: 55 cm (+/- 10 cm)

Wiring:

• ignition
• ground
• left side indicator
• right side indicator
• reverse light
• parking light
