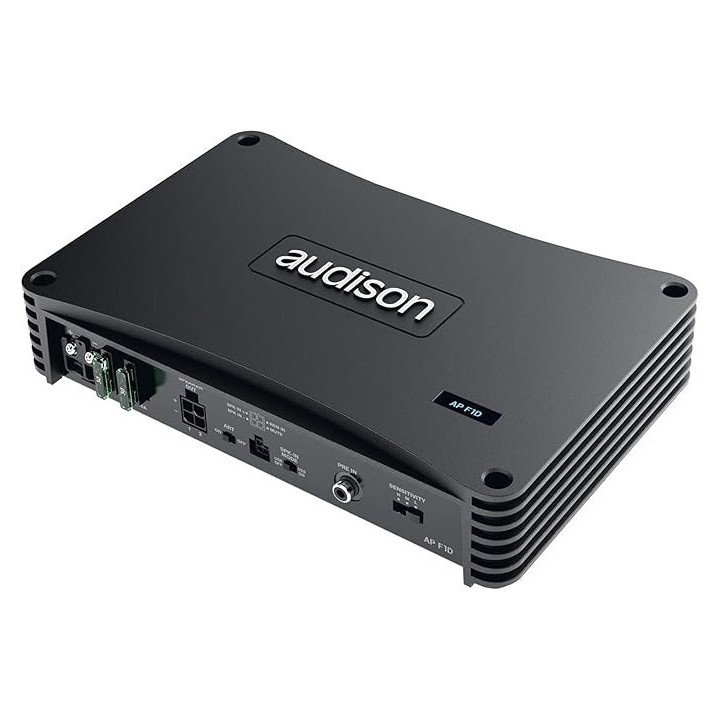

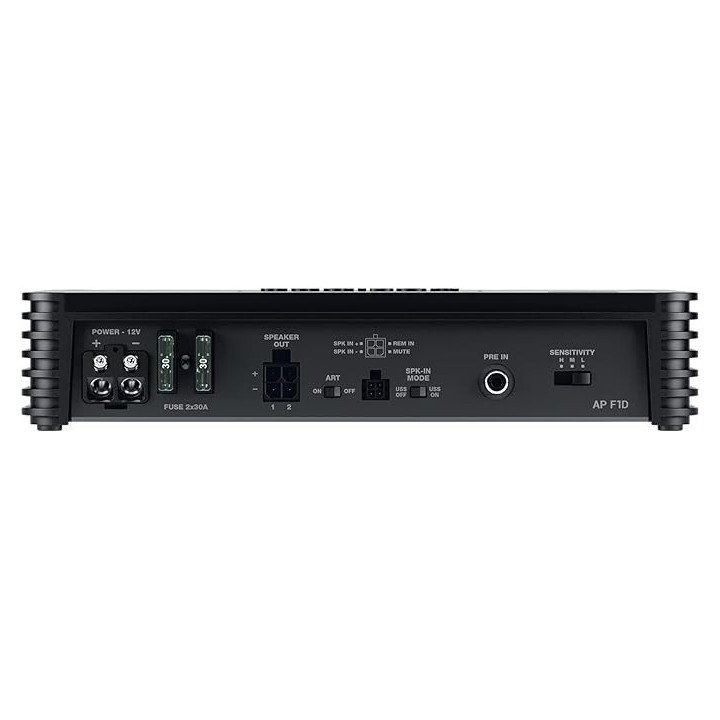

Audison AP F1D

Name: Audison AP F1D
Brand: Audison
SKU: AP F1D
Price: 449.95 EUR
Availability: InStock

Reference: AP F1D

€449.95

Tax included

Channels 1

Class D-Class

Hi Level Input Yes

Low Level Input Yes

Channels	1
Class	D-Class
Hi Level Input	Yes
Low Level Input	Yes
Digital Input	No
Power supply voltage / fuse	11 ÷ 15 VDC / 2 x 30A
Operating power supply voltage	6.5 ÷ 17 VDC
Idling current	1.3 A
Idling current when off	0.05 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power	50 A
Remote IN	6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)	2 ÷ 7 VDC

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power	0.1%
Bandwidth A	(-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz
S/N ratio A	(A weighted @ 1 V): 110 dBA
Damping factor A	(100 Hz, 4Ω, 2 VRMS): 140
Input sensitivity Pre-In	Selectable: 0.6 - 2.0 - 6.0 VRMS
Input sensitivity Speaker-In	Selectable: 2.0 - 6.5 - 20 VRMS
Total Power RMS	1000 W
Minimum load impedance	1Ω
Output Power (RMS) @14.4 VDC, 1% THD	1Ch @ 4Ω 500 W x 1 1Ch @ 2Ω 800 W x 1 1Ch @ 1Ω 1000 W x 1
Adjustable Crossover	No
